Description
Stainless Steel Folding Glass Camping Stove – Roll Chimney (Small)
AISI 304 Stainless Steel • Compact Foldable Design • Damper Draft Control • Hot Tent Compatible

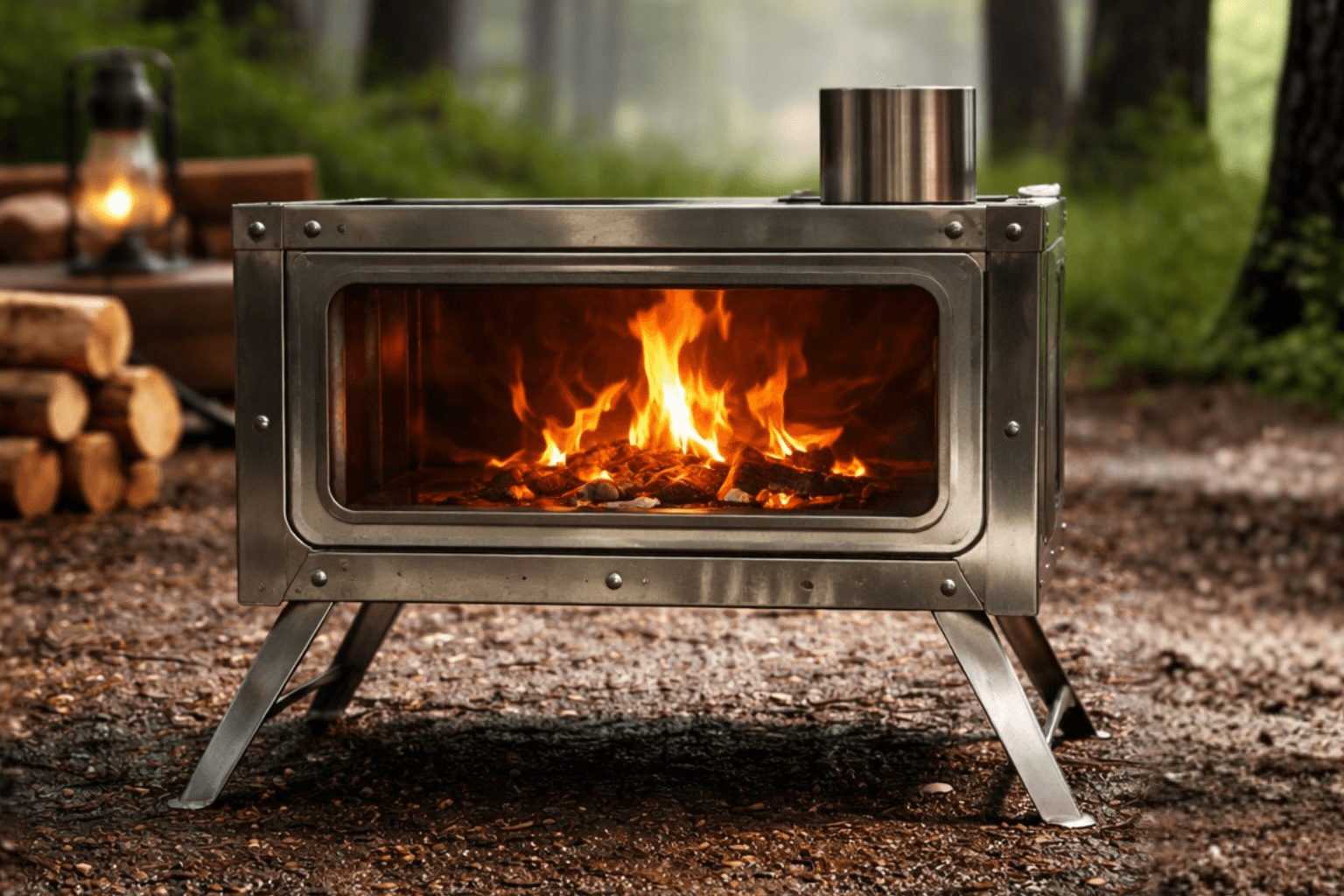

Stainless Steel Folding Glass Camping Stove – Roll Chimney (Small) features a AISI 304 stainless steel body and combines heating and cooking in one portable wood stove, suitable for hot tent (stove-jack tent) use. The large glass front door allows you to enjoy the view of the fire, while the damper-controlled chimney system lets you regulate the draft for more balanced combustion. Thanks to its foldable structure, it occupies minimal space during transport and storage.
Key Features
- AISI 304 stainless steel body: Corrosion-resistant structure; long-lasting performance for outdoor use.
- Small size – compact use: Practical heating and cooking solution for small-volume tents and camps.
- Compact foldable body: Folds down after use, taking up very little space; easy to carry and store.
- Large glass front door: Fire ambiance + real-time burn monitoring (makes it easier to know when to add wood).
- Damper chimney outlet: Provides controlled combustion and heat management by adjusting the draft.
- Secondary air intake system: Supports more efficient combustion and helps reduce smoke.
- Reinforced top plate: Suitable for camp cooking with kettles and pots.
- Foldable legs: Elevates the stove from the ground for safer positioning and better airflow.
- Roll (coil) chimney system: Instead of segmented pipes, a single-piece roll chimney minimizes transport volume.
Technical Specifications
- Product name: Stainless Steel Folding Glass Camping Stove – Roll Chimney (Small)
- Material: AISI 304 Stainless Steel
- Weight: 7.5 kg
- Assembled dimensions: 45 × 22 × 34 cm
- Folded dimensions: 38 × 22 × 8 cm
- Total chimney length: 2500 mm (2.5 m)
- Fuel type: Wood / kindling / dry branches (suitable for camping use)
- Usage area: Camping, hot tent, outdoor use next to caravans (with proper safety precautions)
Box Contents
- Stove body (AISI 304): 1 piece
- Roll (coil) chimney: 1 set (total 2.5 m)
- Windproof chimney cap: 1 piece
- Heat-resistant gloves: 1 pair
- Carrying bag: 1 piece
What Is a Roll (Coil) Chimney?
In this model, the chimney is designed as a single-piece rollable (coil) chimney instead of traditional segmented pipes. This allows the chimney set to be transported in a very compact form and then shaped into a pipe during installation. It offers advantages in ease of transport and low storage volume.
Installation & Usage Tips
- First ignition: Start with the damper fully open; once proper draft is established, gradually reduce for control.
- Wood selection: Dry wood burns more efficiently, producing less smoke and more stable heat.
- Cooking: When using kettles or pots on the top plate, place the stove on a flat and stable surface.
- Cleaning: Ensure the stove is completely cool before removing ash and soot after use.
Safety Notes
- Indoor warning: Do not use in enclosed spaces without adequate ventilation.
- Hot tent use: Use only in tents equipped with a stove jack (heat-resistant chimney exit).
- CO alarm recommended: A carbon monoxide (CO) alarm is recommended for tent use.
- Floor protection: Always use a heat-resistant floor protection plate on flammable surfaces.
- High temperature: The product reaches high temperatures during operation; do not touch without gloves.
Applications
- Heating inside hot tents
- Heating and cooking at campsites
- Fishing and hunting camps
- Outdoor use next to caravans
